Color‑Coded Load Classification of Rectangular Die Springs

Product Definition and Functions

Rectangular coil springs are elastic components characterized by rectangular or flat cross‑section geometry. Thanks to this unique profile design, they deliver superior elasticity and structural stability under compressive loads, making them well‑suited for applications requiring large deflection and high spring force output.

Elastic Support: Acting as elastic support elements in mechanical equipment, rectangular springs absorb vibration and impact energy, lowering operational noise and mitigating component wear.

Force Transmission: Deployed within precision machinery and instruments for controlled force delivery, maintaining stable and predictable equipment performance.

Product Classification and Key Characteristics

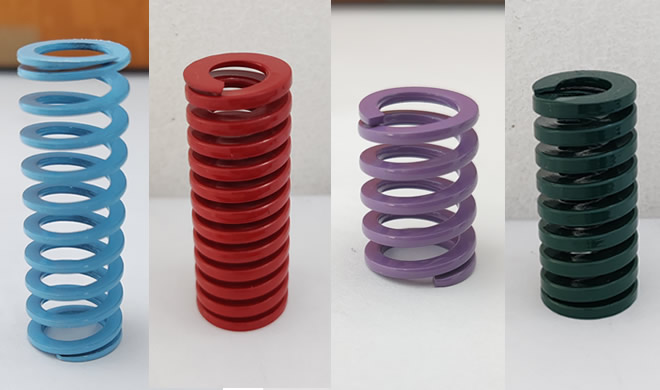

Color coding for rectangular coil springs serves as a visual marking system to distinguish different load‑bearing ratings. This intuitive color scheme enables engineers to quickly identify spring specifications and prevents safety risks caused by improper part selection. Below are standard color‑to‑load classifications:

Yellow – Light LoadApplication scenarios: Light‑pressure support applications, such as switches for precision electronic devices. Features: Low initial spring force, ideal for force‑sensitive assemblies.

Blue – Medium‑Light LoadApplication scenarios: Applications requiring moderate compressive force, including shock absorption for small‑scale mechanical assemblies. Features: Delivers moderate spring output, offering reliable support within compact installation envelopes.

Red – Medium LoadApplication scenarios: Widely adopted for medium‑force requirements, for instance automotive seat adjustment mechanisms and general‑purpose FA automation tooling. Features: High elasticity and outstanding durability; retains consistent performance under repeated cyclic loading.

Green – Heavy LoadApplication scenarios: High‑force support applications such as shock‑absorbing systems for heavy‑duty machinery. Features: Tolerates substantial compressive stress with excellent fatigue‑resistance for continuous heavy‑duty operation.

Brown – Extra‑Heavy LoadApplication scenarios: Extreme‑condition working environments including special‑purpose industrial equipment. Features: Generates maximum spring force and structural stability, engineered for the most demanding operating cycles.

Special Color Designations

Beyond the five mainstream color grades, additional color markers exist for special‑purpose rectangular springs:

Purple: Typically denotes springs with special material treatments or custom process specifications for niche‑industry applications.

Orange: Frequently applied to custom‑modified springs; exact parameters shall refer to individual manufacturer datasheets.

Ivory, light blue, pale green: Less common color variants, generally assigned to non‑standard series or application‑specific custom springs.

Important Notes

Color‑coding Variance: Color mapping standards may differ across manufacturers. Always confirm exact technical parameters with your component supplier during spring selection.

Application‑Oriented Sizing: Correct load‑grade selection is critical to guarantee equipment safety, service life and overall system reliability.

Understanding color‑based load classification helps mechanical engineers and procurement specialists properly specify rectangular coil springs for project requirements, improving system performance and operational safety for factory automation equipment.
