Stopper Bolts: Functions and Applications

Knowledge Center · 2026-10-10 09:22:37 · 32 hits

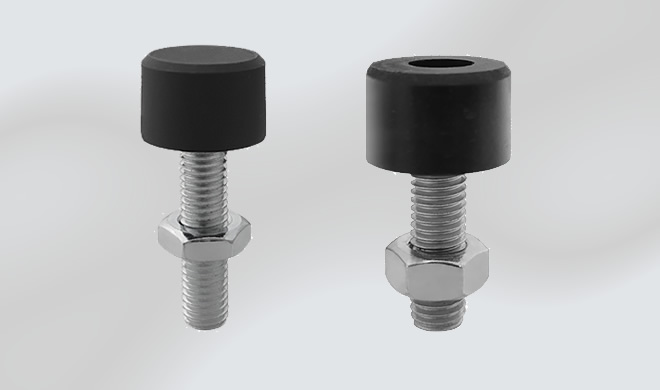

Stopper Bolts.jpg


1. Definition and Point Types


1.1 What a Stopper Bolt Is

A stopper bolt (also known as a socket set screw, or grub screw in British usage) is a fastening element used to fix a component onto a shaft or within a bore. Once threaded into a tapped hole, the tip of the screw bears directly against the part it is meant to hold, delivering anti-rotation, anti-slip, locating, or end-stop (limiting) functions.

It is worth noting how a stopper bolt differs from an ordinary bolt. A standard bolt passes through a clearance hole and receives a nut, generating clamping force between the head and the nut. A stopper bolt instead screws into the hub itself and loads from the inside out — the hub carries the thread, and the screw's tip presses on the shaft running through it. Because the screw body cannot pull the hub along, its effective function is to lock the hub's position relative to the shaft rather than to fasten two parts together.


1.2 Common Point Types

Stopper bolts are classified mainly by the shape of their load-bearing tip. Different tip shapes suit different mating surfaces and duty requirements.

Point typeTip formEngages best withKey advantageCautionCommon standard
Cone pointSharp conical tipSoft shafts, flat or unhardened surfacesHighest grip per unit torque; bites firmlyEasily damages the shaft surface; hard to repositionGB/T 71 · DIN 914
Flat pointFlat cylindrical tipFlat on the shaft, shoulder, or slot bottomDoes not damage the shaft; reusableLower holding force than cone or cup pointGB/T 73 · DIN 913
Cup pointRounded, dimpled hemispherical tipGeneral shafts and hubsBest all-round balance of grip and reusability; most widely usedCan mark softer shafts after repeated tighteningGB/T 74 · DIN 915
Dog pointCylindrical protruding tipKeyway, groove, or pre-machined flatPositive, repeatable location; transmits torque by geometry rather than frictionRequires a matching groove/flat in the shaftGB/T 75 · DIN 916

Standard numbers are for reference; always confirm the exact designation in the supplier's catalogue.


1.3 Holding Force by Point Type (Cup / Cone / Flat Compared)

The locking performance of a stopper bolt comes from two sources: friction at the tip/shaft interface, and — for cone and cup points — the resistance of the tip embedding (deforming) into the shaft surface. The point shape therefore changes both how much axial preload is developed and how much of it is converted into resisting torque.

Point typeContact formRelative holding force*Shaft surface effectReusability / adjustabilityTypical holding torque
Cone pointPoint contact; tip sinks into the shaft★★★★★ — index ≈ 1.0 (highest)Moderate–heavy marking; work-hardens soft shaftsPoor — difficult to back out once embeddedHighest; varies widely with shaft hardness
Flat pointFull flat-face contact; friction only★★☆☆☆ — index ≈ 0.5None — shaft left untouchedExcellentLowest (friction-limited)
Dog pointMechanical engagement in a keyway/flat★★★★★ — positive, geometric locationNone (needs a groove)Good, repeatableHighest and most predictable

Ratings are relative for the same tightening torque, same screw size, and the same shaft; actual holding force depends on screw size, tightening torque, hub and shaft material, surface condition, and lubrication. Treat the index as a comparison trend, not an absolute value


How to read the ranking: cone and cup points win on raw holding force because the tip presses a small, very high-pressure area into the shaft and creates an interference-like lock; the flat point can only rely on friction over a flat interface, so it gives the least holding force for the same torque — but it preserves the shaft and can be backed out and re-set repeatedly.


1.4 Worked Example — Estimating Holding Torque

Take an M8 set screw tightened in a steel hub to 35 N·m, acting on a 12 mm steel shaft, with a tip friction coefficient μ ≈ 0.15 (dry steel-on-steel).


Axial preload developed by the screw

F ≈ T / (K · d) where K ≈ 0.2 (thread/nut factor for a steel thread), d = 8 mm.

F ≈ 35 / (0.2 × 0.008) ≈ 21,900 N


Friction resisting rotation of the shaft

T_friction ≈ μ · F · (d_shaft / 2) = 0.15 × 21,900 × 0.006 ≈ 19.7 N·m


Add the embedment contribution

– Flat point: pure friction → ≈ 20 N·m

– Cup point: friction + slight embedment → ≈ 22–27 N·m

– Cone point: friction + deeper embedment → ≈ 25–30 N·m


Result: for a 12 mm shaft the three point types differ by roughly 40–50% in holding torque. If the transmitting torque of the application is close to these values, switch to a dog point engaging a keyway, which gives a geometric rather than friction-dependent lock and is far less sensitive to μ and shaft finish.


Values are order-of-magnitude estimates for illustration; measure or confirm holding torque on the real assembly, since μ varies strongly with plating, lubricant, and surface roughness.


1.5 Choosing by Point Type

If you need…ChooseWhy
Maximum holding force on a soft/cheap shaftCone pointDeepest embedment, highest grip per unit torque
General-purpose locking, good balanceCup pointStrong grip, reasonable reusability, the default choice
A finished, hardened, or costly shaftFlat pointNo marking; repeatable adjustment
Positive location + verifiable torque capacityDog point in a keywayGeometric lock, not friction-dependent



2. Main Functions


2.1 Prevent Axial or Rotational Displacement

In mounting operations for motor shafts, pulleys, and gears, a stopper bolt fixes the component's position, preventing the part from shifting or slipping during rotation.


2.2 Provide Precise Location

Stopper bolts serve for both temporary and permanent locating. In mechanical slides / linear guides, drive shafts, and couplings, they deliver accurate end-stop and positioning.


2.3 Serve in Adjustment and Setting Devices

By changing the screw's engagement depth, the clearance or stroke of a mechanism can be adjusted. Typical uses include limit switches, shim stacks, and adjusters on optical/instrument equipment.


2.4 Contribute to Torque Transmission

Where a plain friction fit is not enough, a stopper bolt with an embedded pressure head or a locating pin (dog point) engages a keyway or flat, transmitting torque without adding structural complexity. Note the limit: a set screw is a locking element, not a torque coupler — for high torque transfer, use a key, spline, or a keyless locking hub instead.



3. Typical Applications

ApplicationHow the stopper bolt worksRecommended type
Motor shaft ↔ coupling fixing / positioningLocks the coupling hub to the shaft, resisting run-up torqueCup or dog point
Precision slide rail / bushing end-stopHolds a carriage or bushing at a fixed positionFlat or dog point
Instrument / equipment adjuster lockingLocks an adjusting screw after setting clearanceCup point
Architectural & furniture hardwareAssembly adjustment and siting of fittingsFlat point
Automation fixtures / jigsPre-tightens a locating pin so it holds a datumDog point

Beyond these, stopper bolts are common on encoder hubs, timing-pulley bosses, gearbox output flanges, and conveyor shaft sets across the FA industry.



4. Material and Surface Treatment

Most stopper bolts are made from carbon steel (often through-hardened or case-hardened to property class 45H) and may be black-oxided, zinc-plated, or nickel-plated. Stainless steel (A2 / 303 / 316) and brass versions are available for food, medical, marine, and clean-room duty, as well as for applications where corrosion would contaminate the product.


Higher-strength alloy-steel grades allow greater tightening torque but are more susceptible to hydrogen embrittlement if electroplated without proper baking — an important check for outdoor or load-critical installations.



5. Usage Notes


5.1 Use a Torque Tool Matched to the Material

Apply torque with a calibrated hex-key / socket driver sized to the screw's socket. Over-torque strips the socket, the thread, or the hub tap hole ; under-torque lets the part creep under load.


Typical reference tightening torque (carbon-steel set screw, dry thread — confirm on the manufacturer's datasheet):

ThreadHex socket (mm)Typical torque (N·m)
M3 × 0.51.5~ 2
M4 × 0.72~ 4.5
M5 × 0.82.5~ 9
M6 × 1.03~ 15
M8 × 1.254~ 35
M10 × 1.55~ 65
M12 × 1.756~ 110


5.2 Clean the Tapped Hole Before Use

Remove oil, grease, dirt, and metal chips from the hub's thread before installation. Residual oil acts as a lubricant and makes the assembly feel "backed out" even at full torque; chips can jam the tip before it seats.


5.3 Use Thread-Locker Where Needed

Apply a medium-strength thread-locking compound to prevent loosening on vibration-prone setups. Avoid high-strength versions that make future disassembly impossible without heat, and always check compatibility with the hub material and any food/medical approvals.


5.4 High-Vibration Duty

For high-frequency vibration, use an hex socket cup-point set screw combined with a spring washer , or select a model with a safety wire hole / nylon patch. A plain flat-tip screw in a vibrating hub will work loose quickly.



6. Additional Design Guidance

Leave room for the thread: the hub tap hole should be at least ~1.5× the nominal diameter deep, and the screw should engage enough threads to develop its clamping force.

Protect the shaft: a cup or cone point will mark or work-harden a soft shaft. For adjustable mounting points or finished shafts, use a flat or dog-point screw.

Mind the torque ceiling: a cone or cup point becomes the weak link once it has embedded — further tightening increases the risk of stripping the hub thread rather than improving the lock.

Do not use a set screw as a shoulder stop for a moving part unless its tip is designed for it — a cone tip under repeated impact can loosen or roll.

Re-torque after the first run: a freshly installed set screw typically settles slightly; check torque after the first hours of operation.



7. Common Issues

IssueLikely causeCorrective action
Screw works loose under vibrationNo thread-locker / tip type unsuitableUse cup point + spring washer; add medium thread-locker
Hub rotates on the shaftInsufficient torque; friction-only gripIncrease torque to spec; use dog point in a keyway
Thread strippedOver-torque, wrong tool, or shallow tapRe-tap to correct size; use proper hex driver and torque
Screw tip jams / will not back outOld thread-locker built up; debris in threadClean thread; use a threaded insert to repair the tap hole
Shaft surface scored or markedCup/cone point on an unhardened shaftSwitch to flat or dog point; consider a harder shaft
Stainless screw seizes in a steel hubGalling (cold welding)Use dissimilar materials; apply anti-seize within torque limits



8. Selection Checklist

Defined the function: anti-rotation, locating, end-stop, or adjustment.

Chosen the point type (cup / cone / flat / dog) for the shaft condition and required holding force.

Confirmed hub material and that the tap hole depth is sufficient.

Selected material and surface treatment for the environment (corrosion, food, clean room).

Determined the tightening torque and the correct hex-key size.

Decided on thread-locker / washer for the vibration level.

Verified disassembly is possible for serviceable joints.



9. FAQ


Q: Which point type gives the strongest lock?

A: A cone point gives the highest raw holding force because it sinks deepest into the shaft; a cup point is close behind and is the better all-round choice; a flat point gives the least but protects the shaft.


Q: Can I switch from a flat point to a cup point on the same shaft?

A: Generally yes, and the holding force will rise — but the shaft surface is already hardened or marked from prior use, so expect less repeatability than on a new shaft, and verify torquing behaviour.


Q: Does a dog point always beat a cup point?

A: Only if the shaft has a matching keyway or flat. Without that geometry, a dog point can spin in place and may even ride up on the groove; use it as a deliberate positive-location feature.


Q: How much holding force does the surface finish change?

A: A lot — plating, lubricant, and roughness can shift friction-based holding torque by ±30% or more. For critical duties, measure on the real assembly or move to a geometric (dog point / key) lock.
